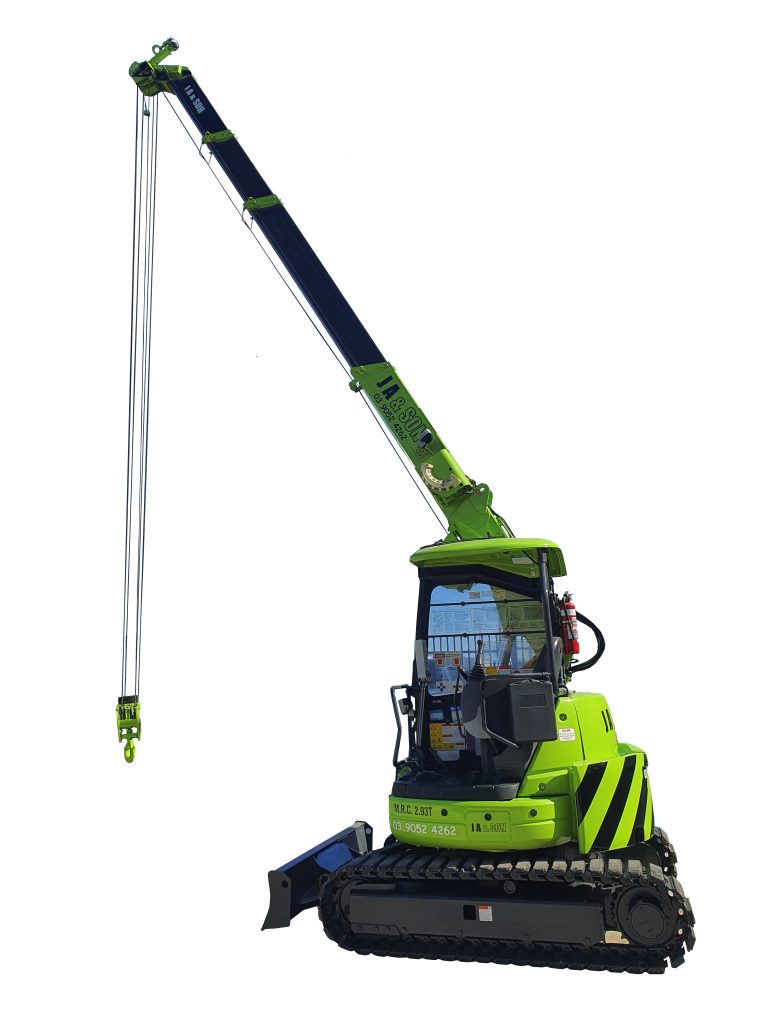

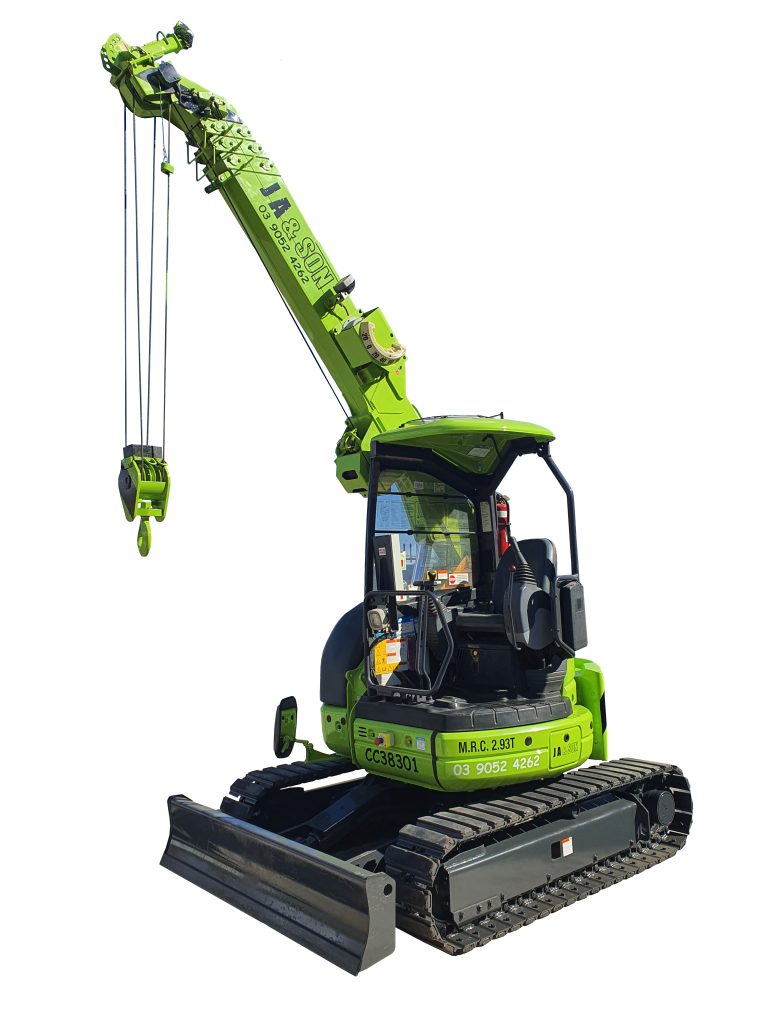

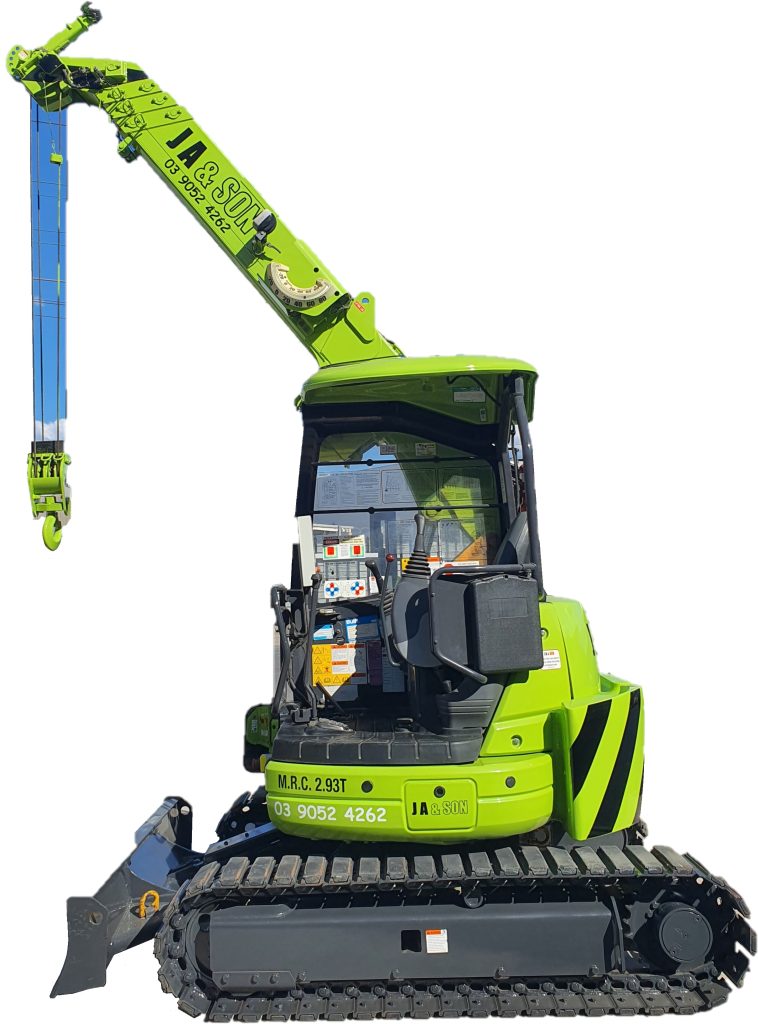

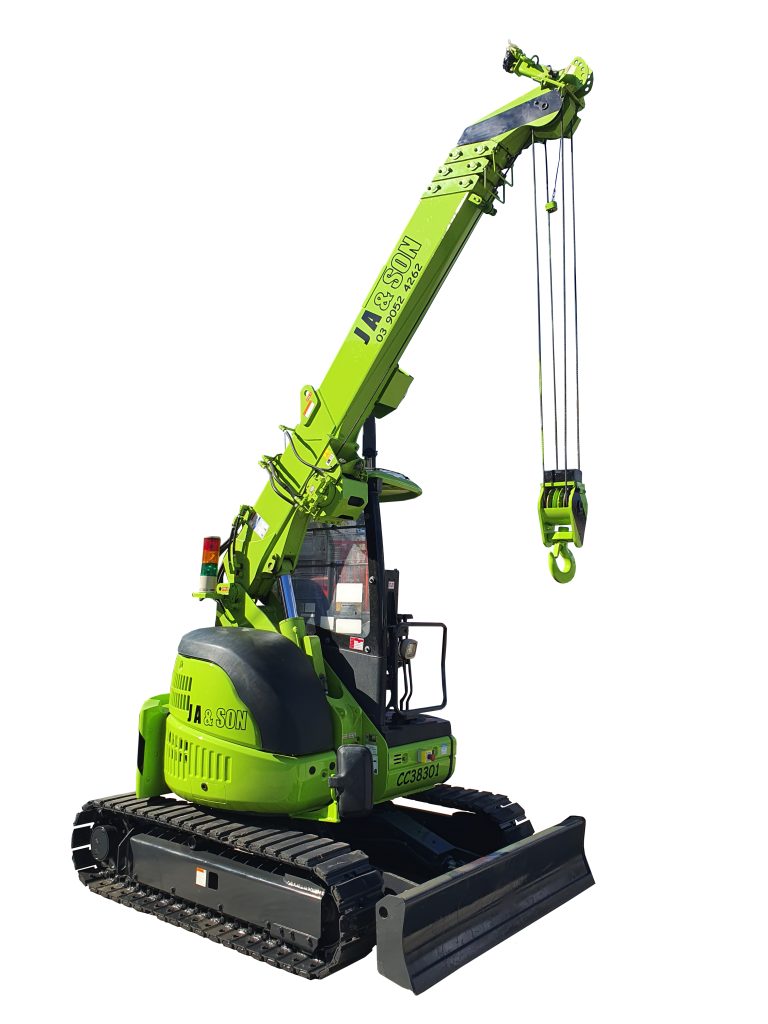

Crawler Crane Maeda LC 383M-5 (Diesel)

The Maeda LC383M-5 is the smallest mini crawler crane in our fleet, which does not have any outriggers, making it suitable for tight access areas. Diesel powered and weighing in at only 4400kg, it has a maximum lift capacity of 2930 kg at a 1.5 meter working radius. It also has a handy pick and carry feature with a capacity of 1465 kg. This crane, combined with our experienced operator will ensure your job is done right the first time.


Height2500 mm
Width1740 mm
Length4020 mm
Mass4400 kg
Maximum Load capacity2930 kg
Refer to manufacturer specifications provided for more details
