Crawler Crane Maeda MC 305CB-3 (Battery)

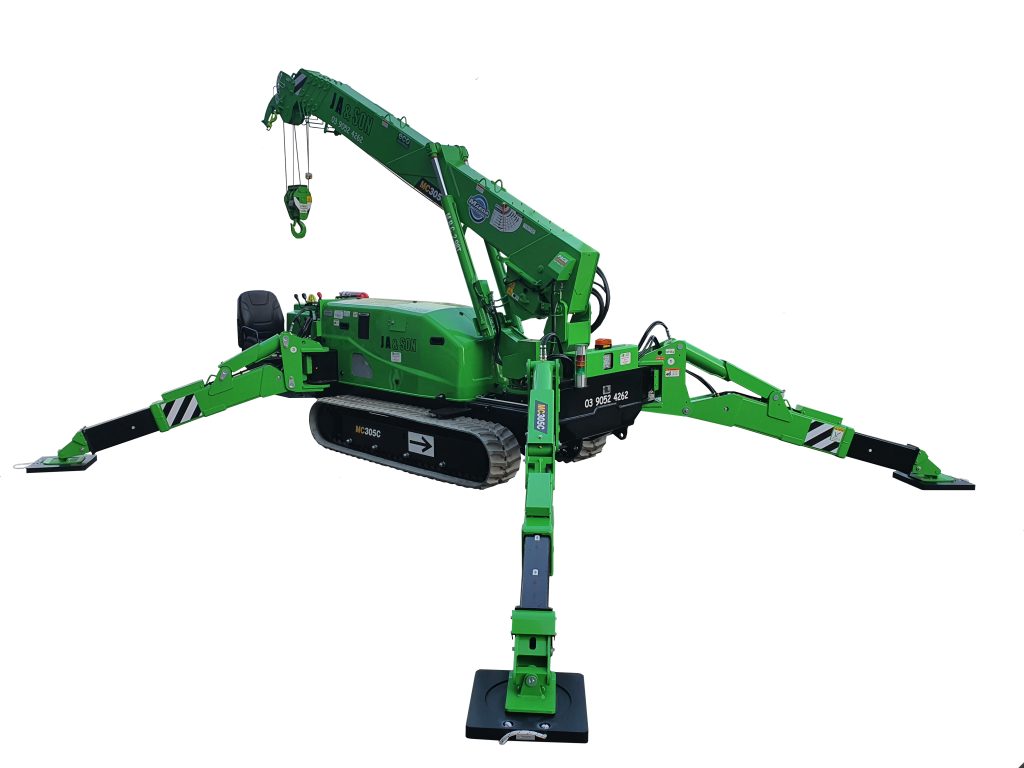

The Maeda MC 305CB-3 is a compact mini crawler crane, which has outriggers, hence the reason why it is also known as a spider crane. When packed up, it is only 1280 mm wide making it suitable to fit through narrow access areas. With all the benefits and features of the Diesel or 3 Phase powered,units, and only weighing in at 3925 kg, it has a maximum lift capacity of 2980 kg at a 2.5 meter working radius. It’s battery powerd operations make for smooth and low noise level, is great for working indoors or in confined spaces, and there are also no emissions. This crane has a maximum lifting height of 12.52 meters and a maximum working radius of 12.16 meters. With the option to still keep using while charging, you will never need to worry about the battery going flat. Just plug it into a 15amp power outlet and away you go back to operating this refined crane. This crane, combined with our experienced operator will ensure your job is done right the first time.


Height1695 mm
Width1280 mm
Length4195 mm
Mass3925 kg
Load capcity2980 kg
Refer to manufacturer specifications provided for more details
