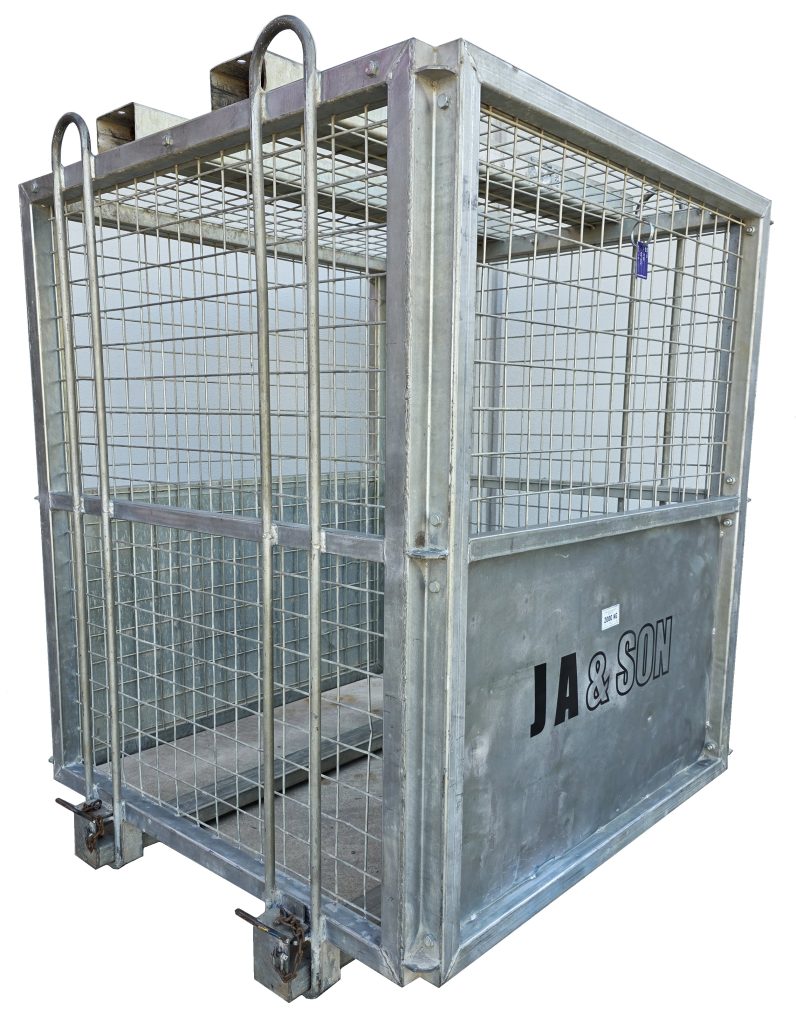

Brick Cage Crane Lift

The brick cage is designed to convey pallets of bricks or other loose products and materials safely to a work location area with the use of a crane for lifting.

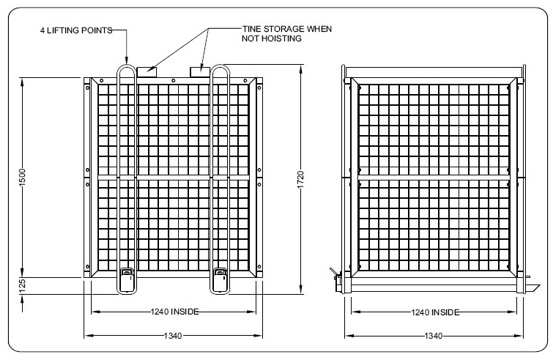

Suitable for 1200mm square pallets (1240mm clearance inside) Unit can be flat packed if needed for storage or transport. The measurements for flat pack are (1750mm x 1370mm x 475mm) or you can keep the unit in its fully assembled state.

Specifications

Overall Height1720 mm
Overall Width1340 mm
Overall Length1340 mm
Mass255 kg
Load capacity2000 kg
Refer to manufacturer specifications provided for more details
